Multi-rows boring machines
Current Position：Home -Product - Multi-rows boring machines

CNC Drilling Centers


Technical parameter

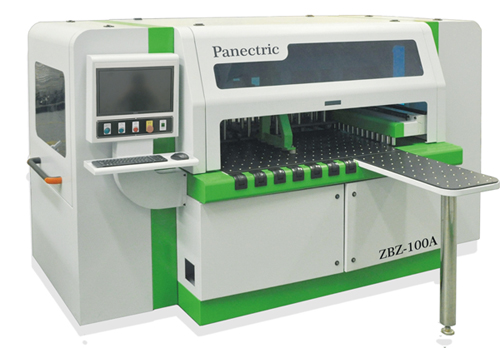

ZBZ-100A

Voltage and frequency

380V 50Hz

Total power

7kw

Max.drilling diameter

35mm

Max.drilling depth

50mm

Max.size of panel

2440*1220*50mm

 Min.distance of drill spaindles

32mm

Connector fixing diameter

10mm

Working air pressure

0.5-0.6MPa

Quantity of drill spindles

19

Spindle speed

2800rpm

Min.size of panel

300*50mm(宽）

Min.length of  hor.drilling

350mm

Overall dimension

3000*1900*1700(h)mm

weight

2850kg
