Technical parameter

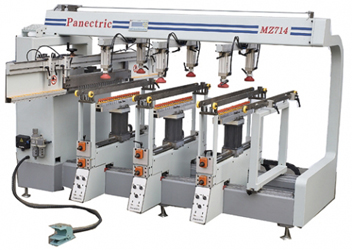

 MZ714

 Technical parameter

 MZ714

Voltage

  380V A

 Frequency

  50Hz

Phase

  3

Totality of vertical drilling row

  3x21

Totality of horizontal drilling row

  1x21

Motor power of vertical drilling group

  1.5kwx3

Motor power of horizontal drilling group

  1.5kw

Max. Thickness of panel

  70mm

Speed of drill spindle（vertical）

  2820r/min

Speed of drill spindle (horizontal)

2820r/min

Center distance of between spindles

 32min

Min.Distance of drilling row

130min

Height of worktable

  920mm

Air pressure of cylinder

0.6-0.8MPa

Overall size

   2500x2400x1520(h)mm

Weight

1700kg
