Technical parameters

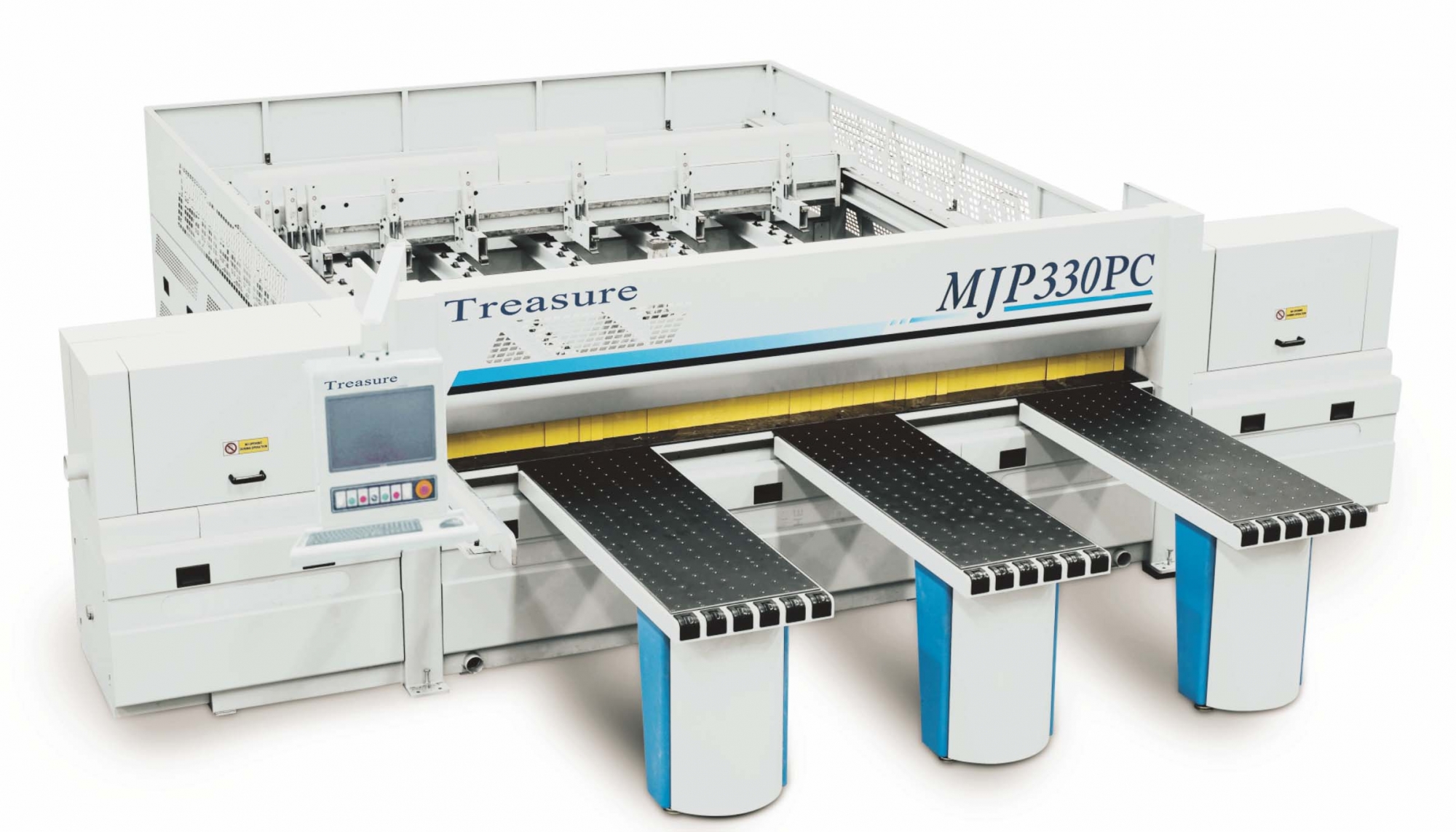

　MJP330PC

　　Technical parameters

　　MJP330PC

　Voltage/Frequency

　380V/50Hz

　Motor power of main saw

　1.5kW

　Haul-off power

　2.2kW

　Feeding power

　1.5kW(AC)

　Max.Cutting width

3200mm　

　Max.Cutting thickness

　90mm

　Diameter of Main saw

　380m*60mm

　Diameter of scoring saw

　160mm*22mm

　Forward speed of carriage

Max.60m/min

　Backward speed of carriage

60m/min

Pneumatic pressure

　0.7-0.8MPa

　Electric structure

PLC control

　Rotation speed of main saw blade

4800rpm

　Over all dimensions

6510*5970*1850mm
