Technical parameter
|
Technical parameter
|

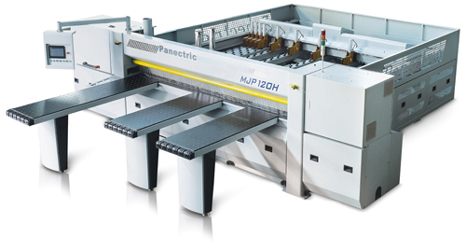

MJP120-EVO
|
Technical parameter
|
MJP120-EVO
|
|
Voltage/Frequency
|
380V/50Hz
|
Motor power of main saw
|
18kw
|
|
Haul-off power
|
1kw（AC伺服）
|
Feeding power
|
2kw（AC伺服）
|
|
Max.Cutting width
|
3300mm
|
Max.Cutting thickness
|
120mm
|
|
Diameter of main saw
|
φ450mmxφ60mm
|
Diameter of scoring saw
|
φ180mmxφ45mm
|
|
Forward speed of carriage
|
Max.80m/min
|
Backward speed of carriage
|
100m/min
|
|
Pneumatic pressure
|
0.7-0.8Mpa
|
Electric structure
|
PLC control
|
|
Rotation speed of main saw blade
|
4000rpm
|
Over all dimensions
|
6510x6970x2020mm
|
Machine features
MJP120-EVO is the best choice for fumiture manufacturers to improve production capacity and capability.
High power motor and strong frame structure are equipped to ensure the stablity of cutting panel 120mm in thickness each time.
The clamp carrier is under close-circle response control by numerical serve motor and magnetic grating ruler
The serve motor cooperating with gear and rack make the saw carriage work precisely and at high speed that can reach 100m/min.
The main beam is configured with forward and backward fence struclute to ensure the high precision.
