Technical parameter
|
MJ633
|
主要技术参数：
|
MJ633
|
|
Voltage
|
380V/50HZ
|
Motor power of main saw
|
5.5kw（7.5HP）
|
|
Motor power of scoring saw
|
0.75kw(1.0HP)
|
Diameter of main saw
|
（φ300~350）mm×φ30mm
|
|
Diameter of scoring saw
|
φ120mm×φ22mm
|
Rotation speed of main saw
|
4200/5500rpm/min
|
|
Rotation speed of scoring saw
|
8000rpm/min
|
Length of sliding table
|
3000mm(3200mmoptional)
|
|
Max.Cutting thickness at 90°
|
≤95mm
|
Height of scoring saw can move
|
0-5mm
|
|
Tilting of saw spindle
|
0-45°
|
|
|

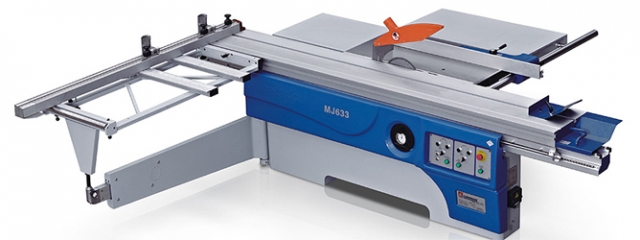

Machine teatures:
•MJ633 adpts international advanced double steel bar guide rail structure that can ensure easy sliding.
•The double saw blades cutting technique ensures the kerf is smooth and flat.
•The whole unti of saw blades can turn any angles from 45°-90°.The tilting is controlled manually through the handwheel.
•MJ633 is equipped with high power motor of pure aluminium case.Both the main saw and scoring saw are electrically lifted,which is easy in operations.
•Speed indication lights are embedded in the front panel.
•MJ633 adopts short shaft trasmits structure to reduce kerf irregularity due to motor knocking.
