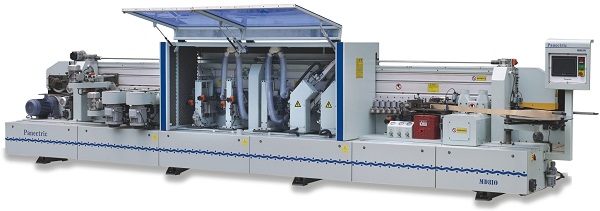

Sanding unit is suitable for wood stripe banding,which sand the surface and the upper/lower edge of stripe.All processes are finished automatically with high efficlency and convenlence .This model is your first choice to produce high-quality furniture
|
Technical parameter
|
MD810S
|
|
Input voltage /frequency
|
380V/50HZ
|
Total power
|
22kW
|
|
Panel
length
|
10-60mm
|
Panel thickness
|
13-63mm
|
|
Panel width
|
0.4-30mm
|
Edge width
|
80mm
|
|
Edge thickness
|
120mm
|
Drive ratio of gear box
|
50: 1
|
|
Feeding speed
|
6-20m/min
|
Pneumatic pressure
|
0.6-0.7MPa
|
|
Frequency of H-F motor
|
200Hz
|
|
|
|
Overall dimension
|
8000*950*1650（h）mm
|
weight
|
3200kg
|
