Technical parameter：
|
MD618
|
Technical parameter：
|
MD618
|
|
Input voltage
|
380V
|
Min.Panel length
|
120mm
|
|
Total power
|
10kw
|
Feeding speed
|
6-18m/min
|
|
Panel thickness
|
10-56mm
|
Air pressure
|
0.6-0.7MPa
|
|
Thickness of edges in roll
|
0.4-3.0mm
|
Frequency of h-f motor
|
200Hz
|
|
Width of Panel
|
≧80mm
|
Overall size
|
4600×1100×1550（h）mm
|
|
Width of edges in roll
|
12-60mm
|
Weight
|
1680kg
|
Machine features:

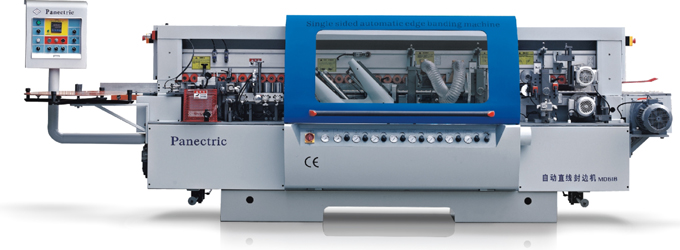

.M0618 automatic edge banding machine applies to straight edge banding
of mid-density fiberboard, shaving board and blockboard and so on.
.According to the technological process, rt can complete the process of
panel feeding. edges sticking . gluing. edges cut off and impact , front and
back edges cutting, rough trimming, fine trimming, scraping and polishing
automatically.
.Wide ranges of working units are available to allow the application of edges
such as PVC,ABS, Melarmine, veneer and solid wood,
.This model IS With simple operations, stable performance and reliable quality
