Technical parameter

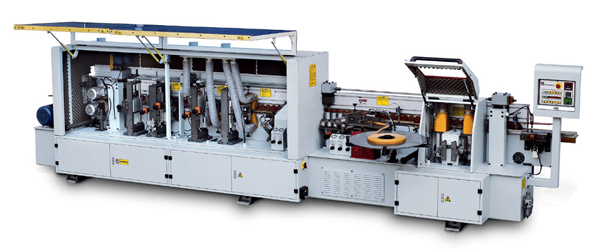

   MD809H

  Technical parameter

 MD809H

    Input Voltage/Frequency

     380V

  Total Power

  15.8kw

    Panel lengh

     10-60mm

  Panel width

  0.4-30mm

    Panel thickness

     13-63mm

  Edge width

  Min.80mm

    Edge thickness

     Min.120mm

  Drive ratlo of gear box

  50:1

    Feeding speed

      6-20m/min

  Pneumatic pressure

  0.6-0.7Mpa

    Frequency of H-Fmotor

      200Hz

  Overall dimenslon

  6400x950x1650mm

    Weight

      2800kg
